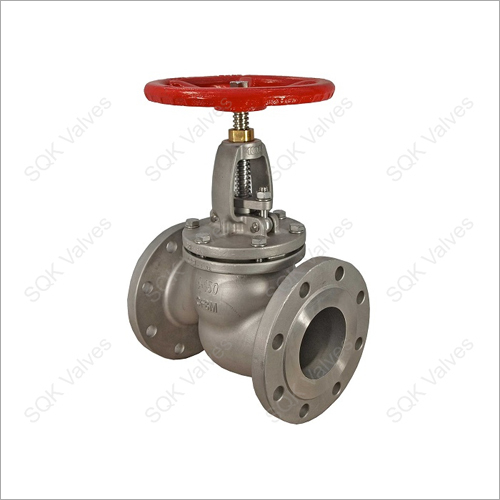

SQK A182 FSS304 Stainless Steel Globe Valve

Send Inquiry

Request To Call Back

SQK A182 FSS304 Stainless Steel Globe Valve

Get a Price/Quote

MOQ : 5 Units

SQK A182 FSS304 Stainless Steel Globe Valve Specification

Connection
Flanged

Sealing
PTFE / Metal to Metal

Material
A182 FSS304 Stainless Steel

Power
Manual

Pressure
150LB/300LB

Media
Water, Oil, Gas, Steam

Working Temperature
-29C to 425C

Port Size
1 Inch (Also available in other sizes)

Surface
Polished

Shape
Globe

Application
Industrial / Pipeline Flow Control

Color
Silver

Size Range
1/2 Inch to 12 Inch

Face to Face
ASME B16.10

Temperature Range
-29C to 425C

Design
Bolted Bonnet

Body Material Grade
FSS304 / ASTM A182

End Connection
Raised Face Flanged (RF)

Stem Type
Rising Stem

Standard
ANSI / DIN / JIS

Testing Standard
API 598

Operation
Handwheel Operated

SQK A182 FSS304 Stainless Steel Globe Valve Trade Information

Minimum Order Quantity
5 Units

Supply Ability
200 Units Per Month

Delivery Time
7 Days

About SQK A182 FSS304 Stainless Steel Globe Valve

SQK A182 FSS304 Stainless Steel Globe Valve

Main features

Bolted body-bonnet design for valves up to Class 800, 1500, 2500. Valves with welded bonnet also available on request

Screwed with seal-welded body-bonnet design for valves of Class 1500, 2500, 3000 & 4500

Bellows-sealed Gate and Globe valves available in Class 800

Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks

Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor

T-head stem-disc connection of gate valve fully meets strength requirements of API 602 and API 598

Rolled ACME thread on stem for smooth operation

Tapered shoulder on the stem for back seating

Self-aligning type gland assembly with stud-and-nut tightening

Integral hard-faced body seat for globe and check valves

Spring-loaded disc on check valves suitable for no horizontal applications too

Gate and globe valves can be offered with electrical actuators

Austenitic SS forging for body and bonnet of Cryogenic valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion

Valves can be offered to NACE MR-0175 and other special NACE requirements

Main features

Bolted body-bonnet design for valves up to Class 800, 1500, 2500. Valves with welded bonnet also available on request

Screwed with seal-welded body-bonnet design for valves of Class 1500, 2500, 3000 & 4500

Bellows-sealed Gate and Globe valves available in Class 800

Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks

Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor

T-head stem-disc connection of gate valve fully meets strength requirements of API 602 and API 598

Rolled ACME thread on stem for smooth operation

Tapered shoulder on the stem for back seating

Self-aligning type gland assembly with stud-and-nut tightening

Integral hard-faced body seat for globe and check valves

Spring-loaded disc on check valves suitable for no horizontal applications too

Gate and globe valves can be offered with electrical actuators

Austenitic SS forging for body and bonnet of Cryogenic valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion

Valves can be offered to NACE MR-0175 and other special NACE requirements

Durable Stainless Steel Construction

Manufactured from FSS304/A182 stainless steel, the SQK globe valve provides excellent resistance to corrosion and harsh media, ensuring long service life. Its silver polished finish further enhances durability and makes it well-suited for demanding environments in industrial flow regulation.

Versatile Application and Standards Compliance

This globe valve aligns with multiple international standards, including ANSI, DIN, and JIS. It is perfect for handling water, oil, gas, and steam, catering to diverse needs in pipeline flow control. Every unit undergoes strict API 598 testing for superior performance and safety.

User-Friendly Handwheel Operation

Equipped with a rising stem and manual handwheel operation, the valve allows precise adjustment and visual stem position monitoring. This ease of operation is particularly beneficial for maintenance teams managing complex industrial systems.

FAQ's of SQK A182 FSS304 Stainless Steel Globe Valve:

Q: How is the SQK A182 FSS304 Globe Valve installed and where can it be used?

A: The valve features a raised face flanged (RF) end connection, making installation straightforward on most industrial pipeline systems. It is suitable for water, oil, gas, and steam applications commonly found in industries such as manufacturing, energy, and chemical processing.

Q: What process does the globe valve control, and what are the benefits of its handwheel operation?

A: This globe valve is primarily designed for regulating or throttling media flow in pipelines. The manual handwheel allows operators to finely control flow rates with ease, providing precise regulation and enabling accurate process management.

Q: When should I choose a globe valve made from FSS304/ASTM A182 stainless steel?

A: Select this valve when your system requires dependable performance under a wide temperature range (-29C to 425C) and exposure to corrosive substances. Its stainless steel construction ensures resilience and longevity, even in challenging environments.

Q: What testing and standards ensure the valve's reliability and safety?

A: Each valve is rigorously tested according to API 598 standards for leakage and performance. Furthermore, it is manufactured to comply with ANSI, DIN, and JIS standards, assuring reliability and compatibility in international industrial markets.

Q: How does the sealing mechanism enhance performance across various media?

A: The globe valve is equipped with PTFE or metal-to-metal sealing options, ensuring a tight shut-off for liquids, gases, and steam. This ensures safety and efficiency by minimizing leaks and maintaining system pressure integrity.

Q: What are the available size ranges and working pressures for the SQK globe valve?

A: Available from 1/2 inch up to 12 inches, the valve can accommodate various pipeline diameters. It is designed to operate at working pressures of 150LB and 300LB, meeting the requirements of diverse industrial systems.
