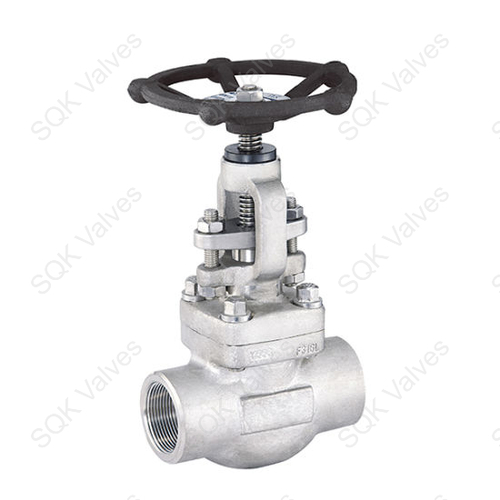

A351 CF8M Stainless Steel Globe Valve

About A351 CF8M Stainless Steel Globe Valve

A351 CF8M Stainless Steel Globe Valve

The BS 1873 Globe Valves is exceptionally sturdy, rugged and durable, with a reputation for quality, integrity and long service.

They are designed for tight sealing and ease of operation. The valves are available flanged & butt-weld ends in pressure rating from ASME Class 150 to Class 2500, and in a variety of materials of construction.

 Globe Valves feature a ball-type disc, outside screw-and-yoke and bolted-bonnet construction. They conform to BS 1873 and also meet the general requirements of API 600, including shell wall thickness and stuffing box dimensions.

Main features

         Bolted body-bonnet design,seal welded & Valves with pressure seal bonnet

         Bellows-sealed Globe valves available

         Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks

         Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor

         Rolled ACME thread on stem for smooth operation

         Tapered shoulder on the stem for back seating

         Self-aligning type gland assembly with stud-and-nut tightening

         Integral hard-faced body seat for globe and check valves

         Spring-loaded disc on check valves suitable for no horizontal applications too

         Gate and globe valves can be offered with electrical actuators

         Austenitic SS forging for body and bonnet of Cryogenic valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion

         Valves can be offered to NACE MR-0175 and other special NACE requirements



Cast steel ASME B16.34 T Type & Y Type Globe Valves Pressure Seal Bonnet design

The ASME B16.34 series of T Type & Y Type Globe Valves features a pressure seal bonnet design for high pressure services. These valves are extensively used in high pressure and high temperature steam, oil, gas, chemical and water applications in thermal power plants, fertiliser plants, petrochemical plants and refineries. These valves are available in butt weld ends in pressure ratings of Classes 900, 1500 and 2500, and come in carbon steel and alloy steel construction.



Cast Steel Cryogenic Globe Valves

Specially-adopted, extended-bonnet globe valves provide the right solution for such low-temperature and cryogenic services. We offer a range of globe valves (as well as check valves) for low temperature and cryogenic services, used in processing, storage and transportation of liquefied gases such as Ethylene, LPG,LNG, Hydrogen, Helium, Oxygen, Nitrogen and Argon. Low temperature services of up to -460 C are covered by low-temperature carbon steels like LCB and LCC materials. Cryogenic Globe Valves are available in ASME Classes 150 to 1500. Extended Bonnet Optional extended bonnet with vapour column length according to BS 6364 and / or customer specifications will be provided

Reliable Flow Control for Demanding Applications

Engineered to stringent industry standards such as ASME B16.34 and API 602, the A351 CF8M Stainless Steel Globe Valve delivers consistent and accurate flow regulation. Its rising stem design allows easy position monitoring, while a bolted bonnet ensures strong sealing integrity. This valve is built to endure rigorous operating environments, making it a top choice for pipeline systems handling water, oil, gas, and steam.


Superior Material and Corrosion Resistance

Crafted from ASTM A351 CF8M stainless steel, this globe valve offers notable resistance to corrosion, even in harsh or chemically aggressive conditions. The polished, silver surface maintains long-term appearance and performance. The use of PTFE or metal-to-metal sealing and robust construction ensures reliability and safety in continuous industrial use.
