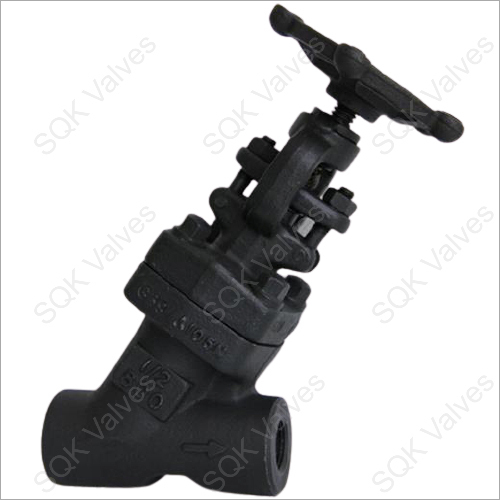

Y Type Globe Valve

Get a Price/Quote

MOQ : 5 Units

Y Type Globe Valve Specification

Sealing
PTFE / Metal-to-Metal

Connection
Flanged / Screwed

Material
Stainless Steel

Power
Manual

Pressure
Up to 40 bar

Media
Water, Steam, Gas, Oil

Working Temperature
-20C to 220C

Port Size
3/4 inch to 12 inch

Surface
Polished

Shape
Y Type

Application
Industrial, Chemical Plants, Power Plants, Water Treatment

Color
Silver

End Connection
Flanged / Screwed (BSP/NPT)

Applicable Fluids
Corrosive and Non-Corrosive Liquids & Gases

Trim Material
Stainless Steel / Alloy Steel

Packing
Graphite / PTFE Gland Packing

Bonnet Type
Bolted Bonnet

Testing Standard
API 598

Standard
DIN / ANSI / BS

Face-to-Face Dimension
As per Manufacturer Standard

Seat Type
Renewable / Integral

Body Type
Angled (Y Pattern)

Operation Type
Handwheel

Y Type Globe Valve Trade Information

Minimum Order Quantity
5 Units

Supply Ability
200 Units Per Month

Delivery Time
7 Days

About Y Type Globe Valve

Y Type Globe Valve

The BS 1873 Globe Valves is exceptionally sturdy, rugged and durable, with a reputation for quality, integrity and long service.

They are designed for tight sealing and ease of operation. The valves are available flanged & butt-weld ends in pressure rating from ASME Class 150 to Class 2500, and in a variety of materials of construction.

Globe Valves feature a ball-type disc, outside screw-and-yoke and bolted-bonnet construction. They conform to BS 1873 and also meet the general requirements of API 600, including shell wall thickness and stuffing box dimensions.

Main features

Bolted body-bonnet design,seal welded & Valves with pressure seal bonnet

Bellows-sealed Globe valves available

Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks

Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor

Rolled ACME thread on stem for smooth operation

Tapered shoulder on the stem for back seating

Self-aligning type gland assembly with stud-and-nut tightening

Integral hard-faced body seat for globe and check valves

Spring-loaded disc on check valves suitable for no horizontal applications too

Gate and globe valves can be offered with electrical actuators

Austenitic SS forging for body and bonnet of Cryogenic valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion

Valves can be offered to NACE MR-0175 and other special NACE requirements

Cast steel ASME B16.34 T Type & Y Type Globe Valves Pressure Seal Bonnet design

The ASME B16.34 series of T Type & Y Type Globe Valves features a pressure seal bonnet design for high pressure services. These valves are extensively used in high pressure and high temperature steam, oil, gas, chemical and water applications in thermal power plants, fertiliser plants, petrochemical plants and refineries. These valves are available in butt weld ends in pressure ratings of Classes 900, 1500 and 2500, and come in carbon steel and alloy steel construction.

Cast Steel Cryogenic Globe Valves

Specially-adopted, extended-bonnet globe valves provide the right solution for such low-temperature and cryogenic services. We offer a range of globe valves (as well as check valves) for low temperature and cryogenic services, used in processing, storage and transportation of liquefied gases such as Ethylene, LPG,LNG, Hydrogen, Helium, Oxygen, Nitrogen and Argon. Low temperature services of up to -460 C are covered by low-temperature carbon steels like LCB and LCC materials. Cryogenic Globe Valves are available in ASME Classes 150 to 1500. Extended Bonnet Optional extended bonnet with vapour column length according to BS 6364 and / or customer specifications will be provided

Product details

Country of Origin	Made in India
Material	Carbon Steel, Alloy Steel, Stainless Steel
Usage/Application	Oil & Gas, Steam, Chemical, PetroChemical, Etc
Pressure	Low Pressure, Medium Pressure, High Pressure
Valve Size	1/2 Inch to 2 Inch
Driving Mode	Manual

Durable and Versatile Flow Control

This Y Type Globe Valve combines a rugged stainless steel design with flexible end connections-flanged or screwed-accommodating diverse installation needs. Its angled Y-pattern design not only prolongs valve life by reducing pressure drop, but also ensures smoother flow for both corrosive and non-corrosive fluids. Suitable for various media such as water, steam, gas, and oil, it is an optimal choice for harsh industrial environments.

Precision Engineering for Demanding Applications

Manufactured in compliance with DIN, ANSI, and BS standards, and pressure-tested according to API 598, the valve delivers high reliability in power plants, chemical facilities, and water treatment plants. Its bolted bonnet design, renewable or integral seat options, and advanced PTFE or graphite gland packing ensure leak-tight sealing and low maintenance requirements.

FAQ's of Y Type Globe Valve:

Q: How is the Y Type Globe Valve typically operated?

A: This valve operates manually using a handwheel, which provides precise control over the flow of fluids or gases within the pipeline, making it suitable for various industrial process applications.

Q: What types of fluids and media can the Y Type Globe Valve handle?

A: The valve is designed for both corrosive and non-corrosive liquids and gases, including water, steam, oil, and gas, thanks to its stainless steel or alloy steel construction and advanced sealing options.

Q: When should I choose a Y Type Globe Valve with a bolted bonnet and flanged connection?

A: Opt for this configuration in high-pressure or high-temperature environments, such as power plants or chemical facilities, where superior sealing, ease of maintenance, and robust connection are essential.

Q: Where are these Y Type Globe Valves commonly installed?

A: These valves are commonly installed in industrial settings, such as water treatment plants, chemical processing facilities, power generation plants, and wherever controlled regulation of fluids is needed.

Q: What process is used to ensure the Y Type Globe Valve's performance?

A: Each valve undergoes pressure and leakage testing in accordance with API 598 standards to ensure optimal durability, safety, and compliance with globally recognized industry benchmarks.

Q: What are the benefits of using a renewable seat and PTFE packing?

A: A renewable seat allows for easy replacement and extended valve life, while PTFE packing ensures excellent sealing performance, reducing leakage even in challenging service conditions.
