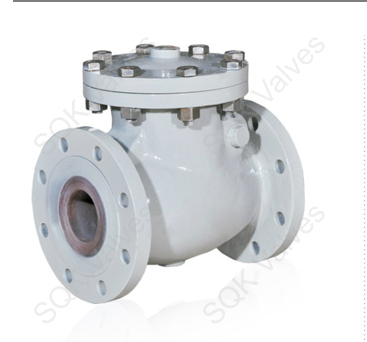

A216 WCC Cast Carbon Steel Swing Check Valve

Get a Price/Quote

MOQ : 5 Units

A216 WCC Cast Carbon Steel Swing Check Valve Specification

Structure
Swing Check Valve

Material
A216 WCC Cast Carbon Steel

Power
Manual

Pressure
Class 150 to Class 2500

Media
Water, Oil, Gas

Working Temperature
Up to 425C

Port Size
2 inch to 24 inch

Surface
Painted / Anti-corrosive coating

Shape
Swing Type

Application
Industrial

Operation
Non-return, prevents backflow

Face to Face Dimension
ASME B16.10

Testing Standard
API 598

Size Range
2 inch to 24 inch

Seat Material
Metal / Soft Seated

Body Material
A216 WCC

Installation Position
Horizontal or Vertical

End Connection
Flanged, Butt Weld

Flow Direction
Uni-directional

Design Standard
API 6D, ASME B16.34

A216 WCC Cast Carbon Steel Swing Check Valve Trade Information

Minimum Order Quantity
5 Units

Supply Ability
200 Units Per Month

Delivery Time
7 Days

About A216 WCC Cast Carbon Steel Swing Check Valve

A216 WCC Cast Carbon Steel Swing Check Valve is easy to design and maintain. The check valve has got rugged construction and the capability of standing impacts, rust, and shear forces. It is designed and developed in our state of the art production division with the incorporation of advanced techniques and tools. Due to its high operational reliability and performance, we are seeing a huge demand for the check valve in the marketplace. A216 WCC Cast Carbon Steel Swing Check Valve can regulate the flow of fluids and maintain unidirectional flow.

The API BS 1868 series of Swing Check Valves is exceptionally sturdy, rugged and durable, with a reputation for quality, integrity, and long service.

They are designed for tight sealing and ease of operation. The valves are available flanged & butt-weld ends in pressure rating from ASME Class 150 to Class 2500, and in a variety of materials of construction.

Check Valves are of swing-type and bolted-cover construction. They conform to BS 1868 and also meet the general requirements of API 600, including shell wall thickness.

Main features :

Bolted body-cover design, seal welded & Valves with pressure seal cover
Bolted body-cover joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks
Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor
T-head stem-disc connection of gate valve fully meets strength requirements of API 602 and API 598
Rolled ACME thread on the stem for smooth operation
Tapered shoulder on the stem for back seating
Self-aligning type gland assembly with stud-and-nut tightening
Integral hard-faced body seat for globe and check valves
Spring-loaded disc on check valves suitable for no horizontal applications too
Gate and globe valves can be offered with electrical actuators
Austenitic SS forging for body and bonnet of Cryogenic valves, resulting in excellent impact strength, minimal heat loss, and resistance to corrosion
Valves can be offered to NACE MR-0175 and other special NACE requirements

Cast steel ASME B16.34 Swing Check Valves Pressure Seal Bonnet design

The ASME B16.34 Swing Check, and Y Type Swing Check Valves feature a pressure seal bonnet design for high-pressure services. These valves are extensively used in high pressure and high-temperature steam, oil, gas, chemical, and water applications in thermal power plants, fertilizer plants, petrochemical plants, and refineries. These valves are available in butt weld ends in pressure ratings of Classes 900, 1500 and 2500, and come in carbon steel and alloy steel construction.

High-Performance Swing Check Valve

Crafted from A216 WCC cast carbon steel, this swing check valve is engineered to prevent backflow in critical industrial systems. Its rugged construction, choice of seat materials (metal or soft), and precision design standards make it a preferred choice for challenging environments involving water, oil, or gas.

Versatile Installation and Operation

This valve is designed for flexibility in installation-suitable for both horizontal and vertical pipeline orientations. Its manual and non-return operation, combined with reliable uni-directional flow management, addresses diverse operational needs in industries such as oil and gas, petrochemicals, and water treatment.

FAQ's of A216 WCC Cast Carbon Steel Swing Check Valve:

Q: How does the A216 WCC Cast Carbon Steel Swing Check Valve prevent backflow?

A: The swing check valve operates with a swinging disc mechanism, which allows fluid to flow in one direction while automatically closing to prevent reverse flow. This mechanism ensures non-return operation, effectively stopping backflow in pipelines.

Q: What industries commonly use this type of swing check valve?

A: Industries such as oil and gas, petrochemical, water treatment, and general industrial sectors utilize this valve due to its durability, resistance to high pressure and temperature, and effective prevention of backflow.

Q: When should I choose metal versus soft seating for the valve?

A: Metal seats are recommended for high-temperature or abrasive media, providing enhanced durability, while soft seats offer better sealing for low-pressure or clean fluid services. The selection depends on operating conditions and media characteristics.

Q: Where should this swing check valve be installed in a pipeline?

A: The A216 WCC swing check valve can be installed in either horizontal or vertical pipelines. It is essential to ensure that the valve is installed in the direction of flow indicated by the manufacturer to guarantee optimal performance.

Q: What are the benefits of the anti-corrosive coating on the valve?

A: The painted or anti-corrosive coating protects the valve from environmental and media-induced corrosion, extending its service life and maintaining performance, especially in harsh industrial environments.

Q: How is the valve tested before shipment?

A: Each valve undergoes stringent testing according to API 598 standards. This includes pressure and leakage tests to verify integrity and functionality before delivery to the customer.

Q: What is the typical process for ordering or sourcing this valve in India?

A: As a distributor, exporter, manufacturer, supplier, and trader in India, sourcing this valve involves contacting the relevant supplier, discussing specifications (size, pressure class, seat material), and placing the order according to project requirements.
