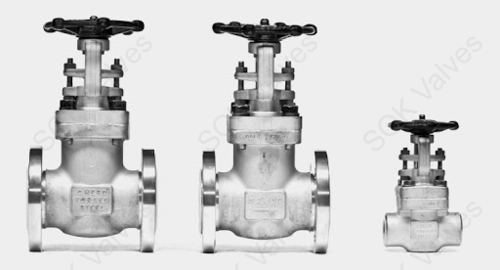

A182 FSS16 Stainless Steel Gate Valve

Get a Price/Quote

MOQ : 5 Units

A182 FSS16 Stainless Steel Gate Valve Specification

Sealing
Soft Seated

Connection
Flanged End

Size
1/2 inch to 12 inch

Structure
Rising Stem

Material
A182 FSS16 Stainless Steel

Type
Gate Valve

Power Source
Manual

Pressure
16 Bar

Media
Water, Oil, Steam

Working Temperature
Up to 200C

Port Size
16 mm

Surface
Polished Finish

Shape
Straight

Body Material
Forged Stainless Steel

Standard
ASTM A182

Face to Face Length
As per ANSI B16.10

Design
Full Bore

Operation
Quarter Turn

Mounting
Horizontal / Vertical

Testing
Hydrostatic Pressure Tested

Handle Type
Wheel (Hand Operated)

Leakage Class
Class VI

Application
Industrial, Chemical, Petrochemical

Corrosion Resistance
High

Color
Silver

End Connection
Raised Face Flange

Service Life
Long Lasting

A182 FSS16 Stainless Steel Gate Valve Trade Information

Minimum Order Quantity
5 Units

Supply Ability
200 Units Per Month

Delivery Time
7 Days

About A182 FSS16 Stainless Steel Gate Valve

A182 FSS16 Stainless Steel Gate Valve

Main Features :

Bolted body-bonnet design for valves up to Class 800, 1500, 2500, 4500. Valves with welded bonnet also available on request
Screwed with a seal-welded body-bonnet design for valves of Class 1500,2500, 4500.
Bellows-sealed Gate and Globe valves available in Class 800
Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks
Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor
T-head stem-disc connection of gate valve fully meets strength requirements of API 602 and API 598
Rolled ACME thread on stem for smooth operation
Tapered shoulder on the stem for back seating
Self-aligning type gland assembly with stud-and-nut tightening
Integral hard-faced body seat for globe and check valves
Spring-loaded disc on check valves suitable for no horizontal applications too
Gate and globe valves can be offered with electrical actuators
Austenitic SS forging for body and bonnet of Cryogenic valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion
Valves can be offered to NACE MR-0175 and other special NACE requirements

Superior Design and Durability

Featuring a full bore and rising stem structure, the A182 FSS16 Gate Valve provides unimpeded flow and precise control. Its forged stainless steel body and polished surface ensure high corrosion resistance and extend service life, making it ideal for rigorous industrial environments.

Versatile Application Range

Designed for use with water, oil, and steam, this gate valve operates efficiently at pressures up to 16 Bar and working temperatures up to 200C. Suitable for mounting both horizontally and vertically, it caters to diverse installation needs across multiple industries.

Trusted Quality Assurance

Each valve undergoes comprehensive hydrostatic pressure testing and adheres to ASTM A182 standards, with face-to-face dimensions conforming to ANSI B16.10. This rigorous process guarantees dependable performance, minimal leakage, and safety for critical applications.

FAQ's of A182 FSS16 Stainless Steel Gate Valve:

Q: How is the A182 FSS16 Stainless Steel Gate Valve installed?

A: The valve can be mounted either horizontally or vertically. Its end connection features a raised face flange, making it compatible with standard piping systems, and installation typically requires bolting the valve to flanged pipe ends.

Q: What applications are suitable for this gate valve?

A: This valve is ideal for industrial, chemical, and petrochemical environments. It handles a media range that includes water, oil, and steam, and is suitable for controlling flow in both high-pressure and high-temperature systems.

Q: When should I use a full bore gate valve like the A182 FSS16?

A: A full bore gate valve is recommended when minimal flow restriction is required and pressure drop must be kept low. Use it for mainline shut-off operations in process industries where efficiency and high throughput are essential.

Q: Where can the A182 FSS16 gate valve be sourced?

A: It is available through authorized distributors, exporters, manufacturers, suppliers, and traders in India. Procurement can be coordinated based on project requirements and preferred suppliers in the region.

Q: What is the testing process for this gate valve?

A: Each valve undergoes hydrostatic pressure testing to ensure it can safely withstand its specified pressure rating. Testing verifies leakage class VI performance and overall integrity before being shipped for installation.

Q: How does the wheel handle and quarter turn operation work?

A: The wheel handle allows manual control over the rising stem, facilitating quarter-turn operation for efficient opening or closing-optimizing both safety and user convenience.

Q: What are the benefits of choosing forged stainless steel for this valve body?

A: Forged stainless steel offers enhanced mechanical strength, corrosion resistance, and longevity compared to other materials. This results in reliable performance and reduced maintenance over the valve's service life.
