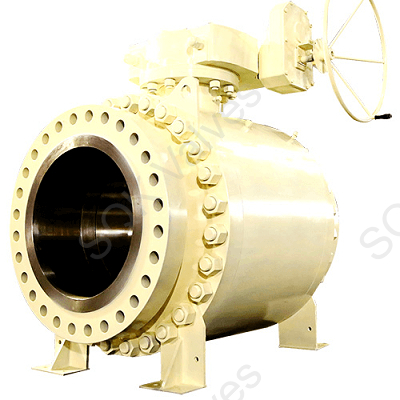

A182 F91 Alloy Steel Ball Valve

Get a Price/Quote

MOQ : 5 Units

A182 F91 Alloy Steel Ball Valve Specification

Pressure
Class 150 to Class 2500

Channels
Single Channel

Caliber
Standard

Structure
Ball Valve

Connection
Flanged

Material
A182 F91 Alloy Steel

Power
Manual

Media
Water, Oil, Gas, Steam

Temperature of Media
High Temperature

Port Size
2 inch

Flange
ANSI B16.5

Finish
Epoxy Painted

Application
Industrial, Petrochemical, Power Plants

Size Range
1/2 inch to 8 inch

Design Standard
API 6D / ASME B16.34

Valve Type
Full Bore / Reduced Bore

Temperature Range
-29°C to +425°C

Body Material
Forged Alloy Steel (ASTM A182 F91)

End Connection
RF / RTJ Flange

Operation Type
Lever / Gear / Actuator

Testing Standard
API 598

Face to Face
ANSI B16.10

Seat Type
PTFE / Metal

A182 F91 Alloy Steel Ball Valve Trade Information

Minimum Order Quantity
5 Units

Supply Ability
200 Units Per Year

Delivery Time
7 Days

About A182 F91 Alloy Steel Ball Valve

Backed by a team of adroit professionals, we are engrossed in supplying the best in class A182 F91 Alloy Steel Ball Valve that is popularly known among our customers owing to its superior design and quality. The valve is made out of the first-rate alloyed metal that is capable of standing impacts, heavy loads, rust, and shear forces, therefore, the ball valve is sure to last for an extended period of time. A182 F91 Alloy Steel Ball Valve is a resilient and long-lasting tool. It can be purchased from us at a cost-effective price.

Size	2" to 56" (50 mm to 1400 mm)
ASME Class	Class 150 to 2500
Design Standard	API 6D

Main Feature

· Trunnion-mounted Ball Valve design complies to API 6D

· Wide portfolio of Side-entry and Top-entry designs

· Fugitive emissions

· Soft and Metal seated valves complies to ISO 15848-1, Class AH and BH

· Fire safe design - to API 607 and API 6FACE Marking

· Meets requirements of Pressure Equipment Directive 2014/68/EU,

· Pneumatic shell test conducted at 1.1 times rated pressure to check shell integrity, when required · Double block and bleed (DBB) feature

· Valves are designed and tested for automatic cavity relief

· Anti-blowout stem design

· Coil springs used for consistent seat loading and lower operating torque

· Lip seals provided for low temperature services

· Primary O ring and Secondary graphite (in 3 stage stem, thrust washer is primary)

· Wide portfolio of Side-entry and Top-entry designs

· Options: Buried service, Cryogenic

· Offered with Electric, Pneumatic and Hydraulic Actuators

· In-house Tests Capabilities

High Temperature and Pressure Performance

Engineered for challenging environments, the A182 F91 Alloy Steel Ball Valve withstands temperatures from -29C up to +425C and pressure classes between 150 and 2500. Its forged alloy construction and precise design standards ensure long-term reliability and safety, making it ideal for power plants and petrochemical facilities.

Versatile Design and Operation

With options for manual, gear, or actuator operation, this ball valve offers flexible usage across various setups. Available in full bore or reduced bore designs and flanged connections (RF/RTJ), installation and maintenance are simplified for industrial pipelines, supporting single channel flow for efficient media handling.

FAQ's of A182 F91 Alloy Steel Ball Valve:

Q: How is the A182 F91 Alloy Steel Ball Valve installed in an industrial system?

A: The valve is mounted using flanged RF or RTJ connections compliant with ANSI B16.5, aligning with the pipeline and securing with bolts. Its face-to-face dimensions follow ANSI B16.10, ensuring compatibility with standard piping systems.

Q: What media can the A182 F91 Alloy Steel Ball Valve handle effectively?

A: This ball valve is designed for water, oil, gas, and steam, even at elevated temperatures and pressures, making it ideal for diverse industrial, petrochemical, and power plant applications.

Q: When should PTFE or metal seat options be selected for the ball valve?

A: PTFE seats are recommended for improved sealing and low-friction applications, while metal seats are preferred for high-temperature or abrasive media where durability is critical.

Q: Where is the A182 F91 Alloy Steel Ball Valve typically used?

A: It finds application in industrial facilities, petrochemical plants, and power stations throughout India and international markets, suited for high-pressure, high-temperature fluid control.

Q: What is the process for testing and quality assurance of this ball valve?

A: Each valve is subject to stringent API 598 testing standards, ensuring leak-tight performance and reliability before delivery to distributors, suppliers, or end users.

Q: How does the full bore and reduced bore design benefit system efficiency?

A: Full bore design allows unrestricted flow, reducing pressure drop and facilitating easy cleaning, while reduced bore options provide cost-effective control where full flow isn't required.
